Wall-Mounted Bathroom Cabinet: Blueprint & Assembly Guide

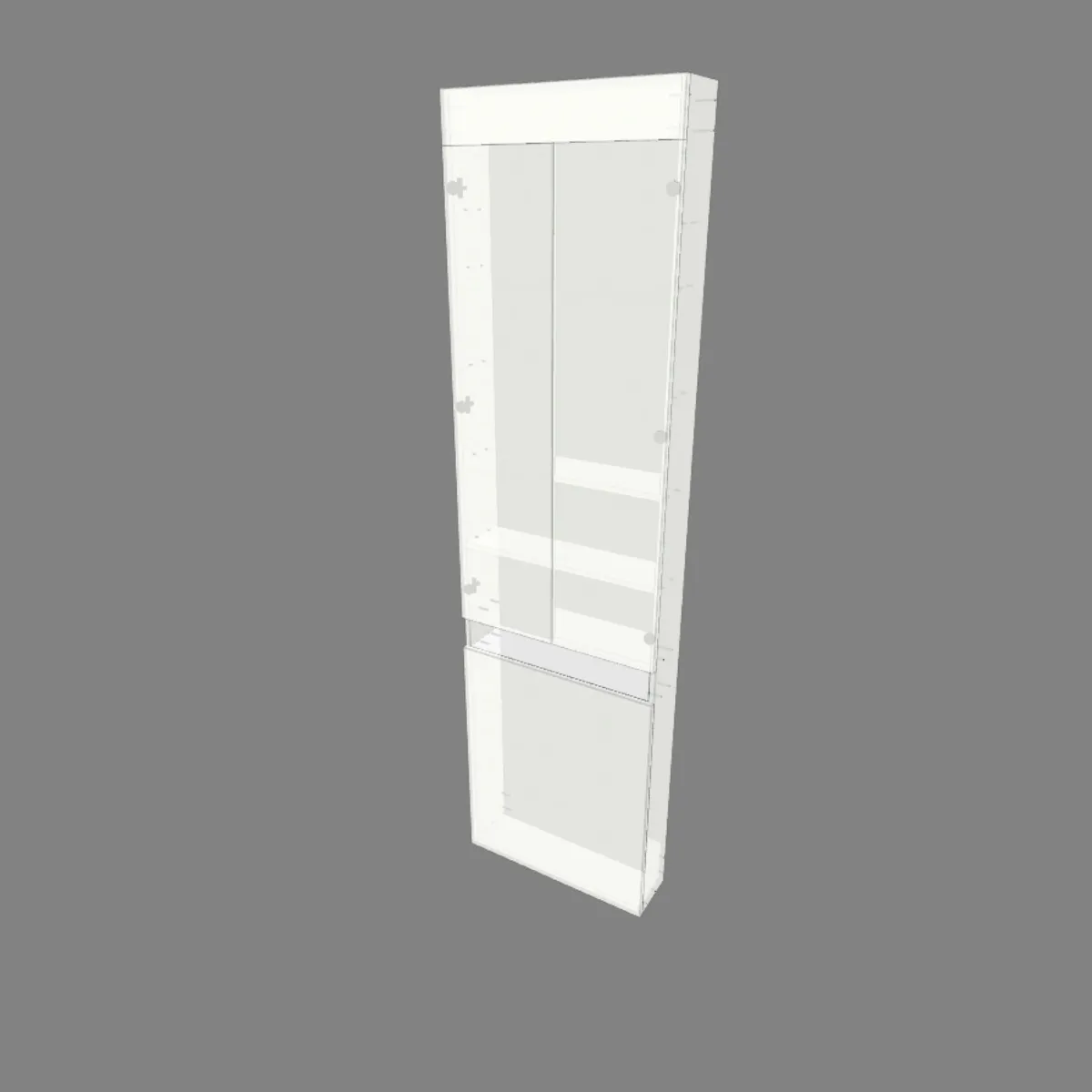

Interactive 3D model: rotate to inspect, open in designer to customize
This project is shared by the community and serves as a reference and starting point. Verify all dimensions and structural correctness before cutting
Total edge banding length - 9.97′ (32.702 m)
Total cutting length - 10.33′ (33.883 m)
| Materials | Hardware |
|---|---|
|
Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color W1000_9) - 1 pcs. + Edge banding 1 x 19 (W1000_9) - 9.97′ (32.702 m) |
Confirmats - 24 pcs. Hinge - 6 pcs. Shelf Holder - 20 pcs. |
Description by Flatma:
This minimalist wall-mounted storage unit offers a sleek vertical solution for organizing bathroom essentials near an entry point. The design combines open and closed shelving, creating a modern aesthetic that maximizes vertical space without overwhelming a room. Its clean lines and matte finish provide versatile storage for towels, toiletries, and other bathroom items, fitting seamlessly into contemporary interior design schemes. The tall, slender profile makes this cabinet an ideal choice for bathrooms where floor space is limited, offering both display and concealed storage options.
Construction Details: Tall Cabinet Blueprint
The cabinet design utilizes a single 16mm thick sheet of Laminated Particle Board (LDSB) measuring 1830mm by 2750mm, which converts to roughly 72 inches wide by 108 inches tall. This vertical structure prioritizes efficient use of height, a common consideration for standard bathroom storage where floor space is often constrained. The blueprint details a single compartment subdivided with internal shelves, featuring both open and closed sections. The total cut length for all components measures 33.883 meters, providing precise data for material planning and project execution.
Materials and Hardware
Primary construction relies on a single sheet of 16mm Laminated Particle Board (LDSB) with a W1000_9 matte white finish. The material efficiency rate for this project reaches 71.53%, indicating a well-optimized cutting plan that minimizes waste. All exposed edges receive a 1 x 19 edge banding in the matching W1000_9 color, with a total application length of 32.702 meters ensuring a clean, finished appearance. The hardware list specifies quantities for assembly but not specific part names, so reviewing the detailed blueprint for fastener types remains essential.
Assembly Process
Assembly involves constructing a wall-mounted vertical carcass from the pre-cut LDSB panels. The process requires careful handling of the 32.702 meters of applied edge banding to achieve a seamless look. Following the cut list derived from the 33.883 meters of total cut length ensures all pieces fit together correctly for the final structure, which combines open and closed shelving within a single, tall unit.
Adaptation Options
This tall cabinet blueprint serves as a reference material and starting point for customization. Dimensions may require adjustment to fit specific site conditions, such as varying ceiling heights or plumbing obstructions. Blueprints are available for preview before downloading, allowing for a thorough review of the design and measurements to ensure compatibility with your bathroom layout before any material purchase or cutting begins.
Frequently Asked Questions
Q: How can I adjust these cabinet dimensions for a bathroom with a lower ceiling?
A: The overall height can be reduced by shortening the vertical side panels. The current design uses a 2750mm (approximately 108-inch) tall sheet, but the blueprint allows for recalculating shelf spacing to maintain proportion. The material utilization rate of 71.53% provides a benchmark for efficiency when modifying the cut plan for a new panel size.
Q: What specific materials are required to build this cabinet?
A: Construction requires one full sheet of 16mm Laminated Particle Board (LDSB) in the W1000_9 matte white finish, measuring 1830mm x 2750mm. You will also need 32.702 meters of matching 1 x 19 edge banding in the W1000_9 color to finish all exposed edges, as detailed in the project specifications.
Q: How complex is the assembly for a DIY builder?
A: The assembly involves managing a significant number of components from a single sheet, indicated by the 33.883 meters of total cut length. The project requires precision in applying 32.702 meters of edge banding for a professional finish. Familiarity with constructing cabinet carcasses and wall-mounting techniques is recommended for stable installation.
Q: How do I access and use the blueprints for this project?
A: Blueprints are available for preview before downloading, which allows you to review all dimensions and the cut list. Use the detailed plan, which includes the total edge length of 32.702m and sheet count, as a foundation. Always verify final dimensions against your actual bathroom space, as the project serves as a reference, not a final specification.
