DIY Office Cabinet Blueprint: Dimensions, Materials & Assembly
Interactive 3D model: rotate to inspect, open in designer to customize
This project is shared by the community and serves as a reference and starting point. Verify all dimensions and structural correctness before cutting
Total edge banding length - 39′ (127.966 m)
Total cutting length - 60.6′ (198.822 m)
| Materials | Hardware |
|---|---|
|
Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H1334_9) - 1 pcs. + Edge banding 1 x 19 (H1334_9) - 0.45′ (1.488 m) Particle Board 0.12″x66.93″x108.07″ (3x1700x2745 mm) ( color H1334_9) - 1 pcs. + Edge banding - 0′ (0 m) Medium Density Fiberboard 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H1334_9) - 4 pcs. + Edge banding 1 x 19 (H1334_9) - 31.04′ (101.842 m) Particle Board 0.12″x66.93″x108.07″ (3x1700x2745 mm) ( color W1000_9) - 1 pcs. + Edge banding - 0′ (0 m) Medium Density Fiberboard 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color W1000_9) - 1 pcs. + Edge banding 1 x 19 (H1334_9) - 7.51′ (24.636 m) |
Hardware not specified |
Description by Flatma:

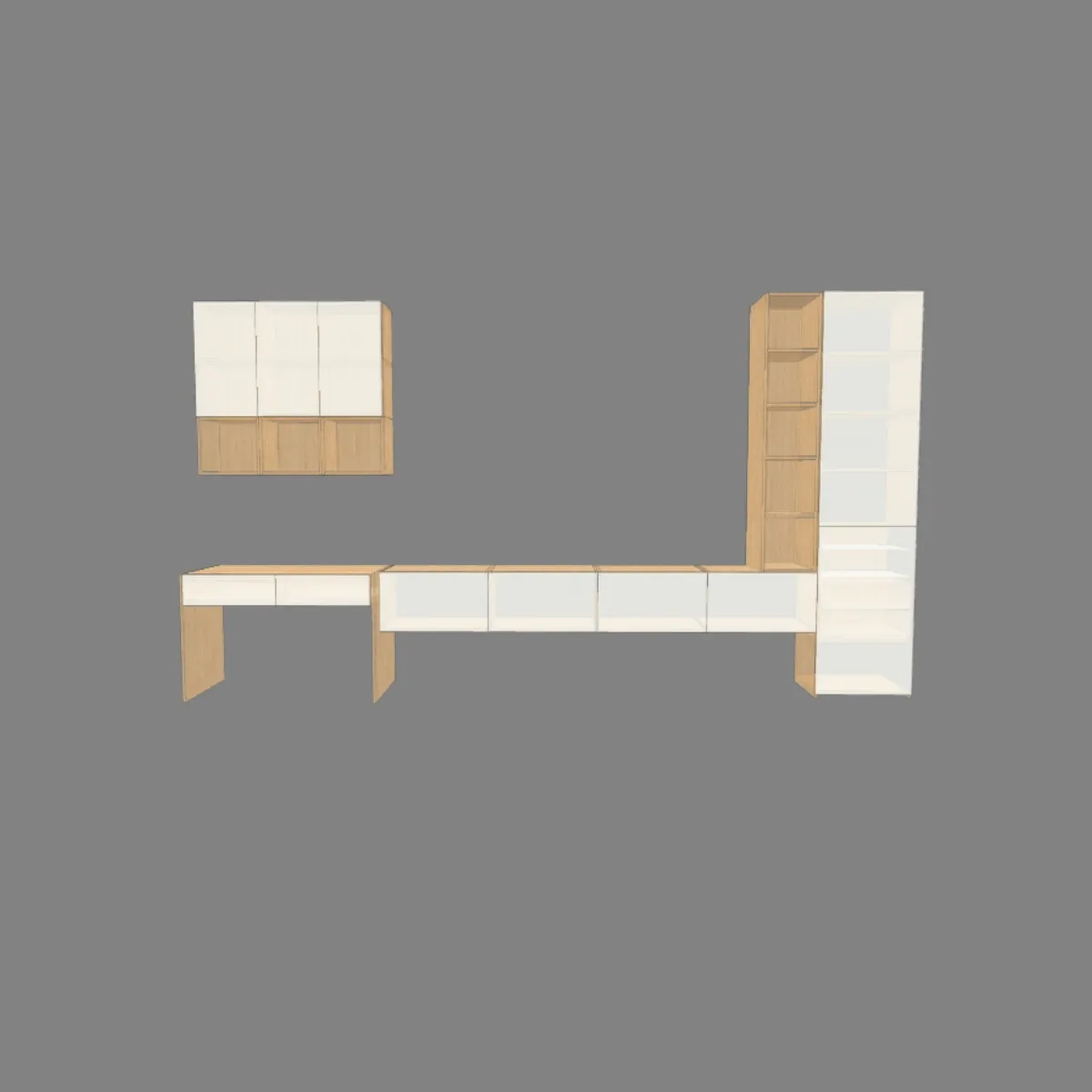

This modular office furniture system delivers a clean, minimalist aesthetic for a productive workspace. The design combines natural wood tones with high-gloss white finishes, creating a contemporary look suitable for home offices or professional settings. The layout integrates wall-mounted cabinets, a dedicated desk area, and a floor-to-ceiling vertical shelving unit, offering a blend of concealed storage and accessible open shelving. This approach to office cabinet design inspiration prioritizes both form and function, organizing a workspace efficiently while maintaining a streamlined appearance.
Construction Details: Office Cabinet Blueprint
The overall dimensions for this modular system measure 3000x2000x500 mm, translating to roughly 118 inches wide, 79 inches high, and 20 inches deep. The rectilinear layout features a combination of closed cabinet carcasses and open shelving, with an integrated desk space for ergonomic workflow. Understanding standard cabinet dimensions helps when planning a built-in look or adapting this freestanding design. The blueprint details a specific configuration, but the modular nature allows for rearrangement of the wall-mounted and floor-standing units to suit different room layouts and storage needs for DIY office cabinet plans.
Materials and Hardware
Primary construction utilizes Medium Density Fiberboard (MDF) and laminated particle board (melamine board) for a balance of stability and finish. The material list specifies five sheets of 16mm MDF (1830x2750 mm) in colors H1334_9 (natural wood) and W1000_9 (high-gloss white), one sheet of 16mm laminated particle board in H1334_9, and two sheets of 3mm particle board (DVP) for backing. The project achieves a material efficiency rate of 62.25%. Edge banding in the H1334_9 profile, totaling 127.966 meters, provides a finished look to all visible edges. The best material for DIY cabinets often involves MDF for painted sections and pre-laminated boards for durability.
Assembly Process
Assembly involves constructing individual cabinet boxes from the cut panels before joining them into the modular system. The total cut length of 198.822 meters indicates a project with multiple components, requiring careful sequencing. Precise application of the 127.966 meters of edge banding is crucial for a professional finish. A step-by-step assembly guide would detail the connection of wall-mounted units to studs and the integration of the freestanding vertical unit and desk surface.
Adaptation Options
These blueprints are available for preview before downloading and serve as a comprehensive reference. The dimensions may require adjustment to fit specific site conditions, such as ceiling height or wall length. This project provides a solid starting point for a modular office system, not a final specification. Consider modifying the shelving layout, altering the desk height, or changing the color scheme to match your decor.
Frequently Asked Questions
Q: How can I adjust these office cabinet plans for a smaller room?
A: The modular design allows scaling down by omitting one wall-mounted section or reducing the width of the freestanding unit. The overall width of 118 inches could be decreased proportionally, ensuring the desk area remains a functional depth of 20 inches. Always verify the adjusted dimensions against the sheet sizes of 72x108 inches (1830x2750 mm) to maintain the 62.25% material efficiency.
Q: What materials do I need to purchase for this project?
A: You will need five sheets of 16mm MDF, one sheet of 16mm laminated particle board, and two sheets of 3mm particle board for backing, as per the detailed cut list. The exact sheet count includes four MDF sheets in H1334_9, one MDF sheet in W1000_9, one laminated board in H1334_9, and one backing sheet in each color (H1334_9 and W1000_9).
Q: How complex is the assembly for a DIY builder?
A: The assembly involves constructing multiple cabinet boxes, which requires careful panel processing and edge banding. The total cut length of nearly 200 meters and the need to apply over 127 meters of edge banding indicate an intermediate skill level. A methodical approach to building each modular unit before final assembly simplifies the process.
Q: How do I access and use the blueprints for this office system?
A: The blueprints are available for download after preview. They provide the cutting diagrams and layout needed to fabricate the panels from the listed sheet materials. Use them as a detailed guide, but remember to double-check all measurements against your actual space before making any cuts, as site conditions can vary.
