Open room divider bookcase with asymmetric shelves – DIY plans

Creator5618
0%

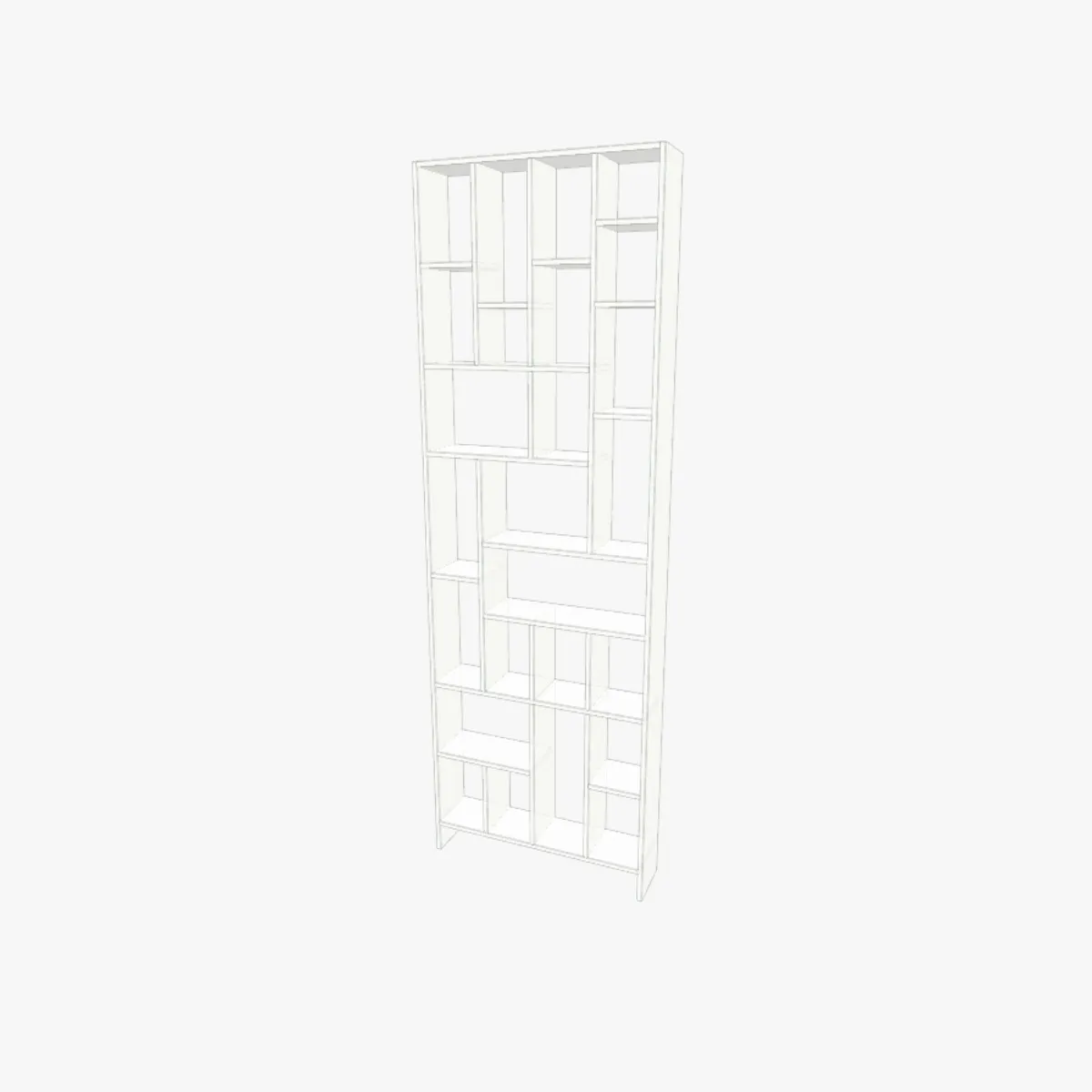

Open room divider bookshelf with asymmetrical shelves, cabinet plans
Overall material utilization factor - 79.58 %
Total edge banding length - 12.1′ (39.682 m)
Total cutting length - 11.32′ (37.144 m)
Materials Hardware
Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color W1000_9) - 1 pcs.
+ Edge banding 1 x 19 (W1000_9) - 12.1′ (39.682 m)

Hardware not specified

Description by Flatma:

This project features an open, double‑sided room divider that works as a bookshelf and a light‑permeable partition. The asymmetrical grid creates visual rhythm while keeping both sides accessible, making it ideal for zoning studios, living rooms, or home offices. The design is optimized for laminated particle board and uses clean, rectilinear joinery common in cabinet construction. It is planned to be assembled as a freestanding unit with the option to secure it to a wall for stability. The current layout is engineered around a single sheet, yielding efficient material use and a compact cut list for convenient fabrication. These bookshelf plans are suitable for DIY projects or professional shops seeking clear cabinet plans and woodworking blueprints.

Construction Features

- Core material: 16 mm (approx. 5/8 in) laminated particle board. Panel size referenced: 1830 x 2750 mm (approx. 72 x 108 in). - Open, through‑partition configuration with mixed‑size cubbies for books and display items. - Recommended depth for books: 12–14 in (305–355 mm). Overall height and width can be set to room conditions; typical heights range from 78–96 in (1980–2440 mm). - Project data indicates approx. 79.58% sheet utilization, total edge banding near 39.68 m (130 ft), and a total cut length around 37.14 m. - Joinery: butt joints with confirmat screws or cam/dowel connectors; pre‑drilling and edge banding on all visible edges. Anti‑tip fixing is advisable when used as a tall divider.

Materials and Hardware

- Laminated particle board, white decor (16 mm). - Edge banding 1 x 19 mm to all front faces. - Wood screws or confirmat screws, dowels, optional cam bolts, PVA glue. - Leveling feet, concealed brackets, and wall anchors if stabilization is required. - Sanding blocks, edgeband trimmer, and drilling templates for accurate assembly.

Customization Options

- Adjust width, height, and depth; re‑scale the grid of compartments. - Add back panels to selected bays, doors, or drawers for closed storage. - Choose other finishes or wood species; integrate cable grommets for media use. - Convert into two shorter modules or a built‑in niche version. After detailed review, blueprints can be provided and dimensions tailored to individual requirements.
