Rr Free 3D Furniture Projects and Blueprints from the Flatma Community

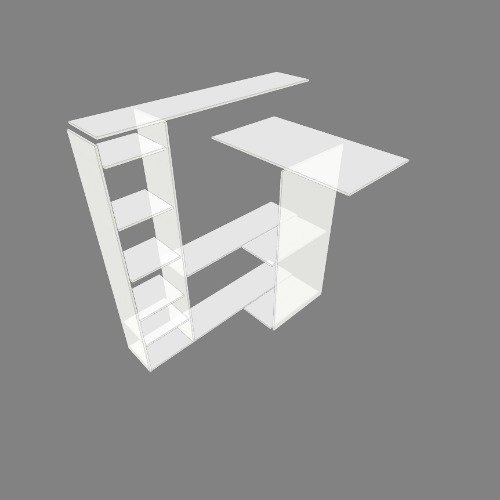

Interactive 3D model: rotate to inspect, open in designer to customize

This project is shared by the community and serves as a reference and starting point. Verify all dimensions and structural correctness before cutting

Open in Flatma

null

Overall material utilization factor - 33.22 %
Total edge banding length - 18.57′ (60.928 m)
Total cutting length - 42.9′ (140.739 m)

Materials	Hardware
Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color U707_9) - 1 pcs. + Edge banding 1 x 19 (W1000_9) - 4.05′ (13.293 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color W1000_9) - 2 pcs. + Edge banding 1 x 19 (W1000_9) - 7.07′ (23.183 m) Particle Board 0.12″x81.5″x110.24″ (3x2070x2800 mm) ( color W1000_9) - 1 pcs. + Edge banding - 0′ (0 m) Countertop 1.1″x23.62″x161.42″ (28x600x4100 mm) ( color W1000_9) - 1 pcs. + Edge banding - 0′ (0 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H1122_22) - 1 pcs. + Edge banding 1 x 19 (W1000_9) - 4.77′ (15.648 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color U702_9) - 1 pcs. + Edge banding 1 x 19 (U702_9) - 1.95′ (6.388 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color F187_9) - 1 pcs. + Edge banding 1 x 19 (F187_9) - 0.74′ (2.416 m) Particle Board 0.12″x48.03″x96.06″ (3x1220x2440 mm) ( color W1000_9) - 1 pcs. + Edge banding - 0′ (0 m)	Confirmats - 84 pcs. Hinge - 14 pcs.

Materials

Hardware

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color U707_9) - 1 pcs.
+ Edge banding 1 x 19 (W1000_9) - 4.05′ (13.293 m)

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color W1000_9) - 2 pcs.
+ Edge banding 1 x 19 (W1000_9) - 7.07′ (23.183 m)

Particle Board 0.12″x81.5″x110.24″ (3x2070x2800 mm) ( color W1000_9) - 1 pcs.
+ Edge banding - 0′ (0 m)

Countertop 1.1″x23.62″x161.42″ (28x600x4100 mm) ( color W1000_9) - 1 pcs.
+ Edge banding - 0′ (0 m)

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H1122_22) - 1 pcs.
+ Edge banding 1 x 19 (W1000_9) - 4.77′ (15.648 m)

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color U702_9) - 1 pcs.
+ Edge banding 1 x 19 (U702_9) - 1.95′ (6.388 m)

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color F187_9) - 1 pcs.
+ Edge banding 1 x 19 (F187_9) - 0.74′ (2.416 m)

Particle Board 0.12″x48.03″x96.06″ (3x1220x2440 mm) ( color W1000_9) - 1 pcs.
+ Edge banding - 0′ (0 m)

Confirmats - 84 pcs.
Hinge - 14 pcs.
