Phòngbooth

Creator120620

0%

Phòngbooth Free 3D Furniture Projects and Blueprints from the Flatma Community

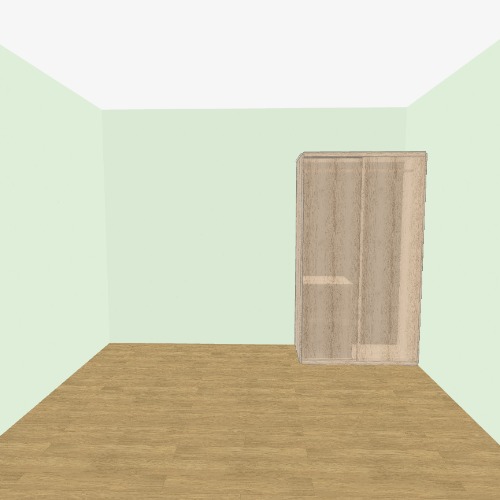

Interactive 3D model: rotate to inspect, open in designer to customize

This project is shared by the community and serves as a reference and starting point. Verify all dimensions and structural correctness before cutting

Open in Flatma

null

Overall material utilization factor - 63.47 %
Total edge banding length - 60.4′ (198.16 m)
Total cutting length - 80.88′ (265.349 m)

Materials	Hardware
Laminated Particle Board 0.63″x81.5″x110.24″ (16x2070x2800 mm) ( color U707_9) - 4 pcs. + Edge banding 0.4 x 19 (U707_9) - 28.47′ (93.415 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H1122_22) - 1 pcs. + Edge banding 1 x 19 (H1122_22) - 7.8′ (25.583 m) Particle Board 0.12″x66.93″x108.07″ (3x1700x2745 mm) ( color W1000_9) - 2 pcs. + Edge banding - 0′ (0 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color W1000_9) - 2 pcs. + Edge banding 1 x 19 (W1000_9) - 11′ (36.102 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H3131_12) - 1 pcs. + Edge banding 1 x 19 (H3131_12) - 3.77′ (12.376 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color U707_9) - 1 pcs. + Edge banding 1 x 19 (U707_9) - 9.35′ (30.684 m)	Confirmats - 34 pcs. Hinge - 8 pcs. Rafixes - 8 pcs. Shelf Holder - 24 pcs.

Materials

Hardware

Laminated Particle Board 0.63″x81.5″x110.24″ (16x2070x2800 mm) ( color U707_9) - 4 pcs.
+ Edge banding 0.4 x 19 (U707_9) - 28.47′ (93.415 m)

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H1122_22) - 1 pcs.
+ Edge banding 1 x 19 (H1122_22) - 7.8′ (25.583 m)

Particle Board 0.12″x66.93″x108.07″ (3x1700x2745 mm) ( color W1000_9) - 2 pcs.
+ Edge banding - 0′ (0 m)

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color W1000_9) - 2 pcs.
+ Edge banding 1 x 19 (W1000_9) - 11′ (36.102 m)

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H3131_12) - 1 pcs.
+ Edge banding 1 x 19 (H3131_12) - 3.77′ (12.376 m)

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color U707_9) - 1 pcs.
+ Edge banding 1 x 19 (U707_9) - 9.35′ (30.684 m)

Confirmats - 34 pcs.
Hinge - 8 pcs.
Rafixes - 8 pcs.
Shelf Holder - 24 pcs.
