LILI NUEVO
Creator112437

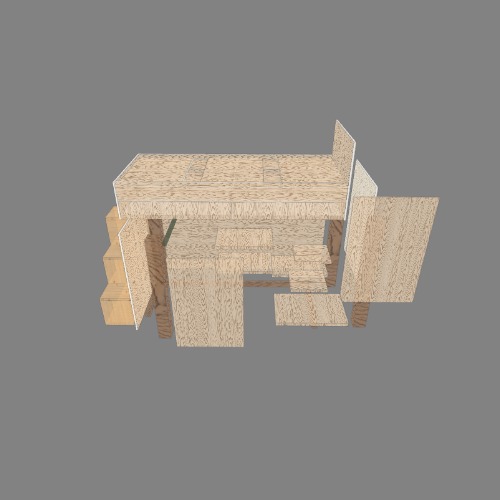

Interactive 3D model: rotate to inspect, open in designer to customize
This project is shared by the community and serves as a reference and starting point. Verify all dimensions and structural correctness before cutting
MIO
Overall material utilization factor - 42.05 %
Total edge banding length - 23.58′ (77.371 m)
Total cutting length - 49.85′ (163.561 m)
Total edge banding length - 23.58′ (77.371 m)
Total cutting length - 49.85′ (163.561 m)
| Materials | Hardware |
|---|---|
|
Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color U702_9) - 1 pcs. + Edge banding 1 x 19 (U702_9) - 4.81′ (15.776 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color F187_9) - 1 pcs. + Edge banding 1 x 19 (F187_9) - 2.7′ (8.872 m) Particle Board 0.12″x48.03″x96.06″ (3x1220x2440 mm) ( color W1000_9) - 1 pcs. + Edge banding - 0′ (0 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color U780_9) - 2 pcs. + Edge banding 1 x 19 (U780_9) - 10.92′ (35.815 m) Particle Board 0.12″x66.93″x108.07″ (3x1700x2745 mm) ( color U763_9) - 1 pcs. + Edge banding - 0′ (0 m) Countertop 1.1″x23.62″x161.42″ (28x600x4100 mm) ( color FL-E077) - 1 pcs. + Edge banding - 0′ (0 m) Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color F416_10) - 1 pcs. + Edge banding 1 x 19 (F416_10) - 5.15′ (16.908 m) Particle Board 0.12″x66.93″x108.07″ (3x1700x2745 mm) ( color W1000_9) - 1 pcs. + Edge banding - 0′ (0 m) |
Confirmats - 70 pcs. Hinge - 24 pcs. Rafixes - 22 pcs. Shelf Holder - 16 pcs. |
