DIY Wood Loft Bed Blueprint with Ladder & Guardrails

Cama Alta de Madera

Description by Flatma:

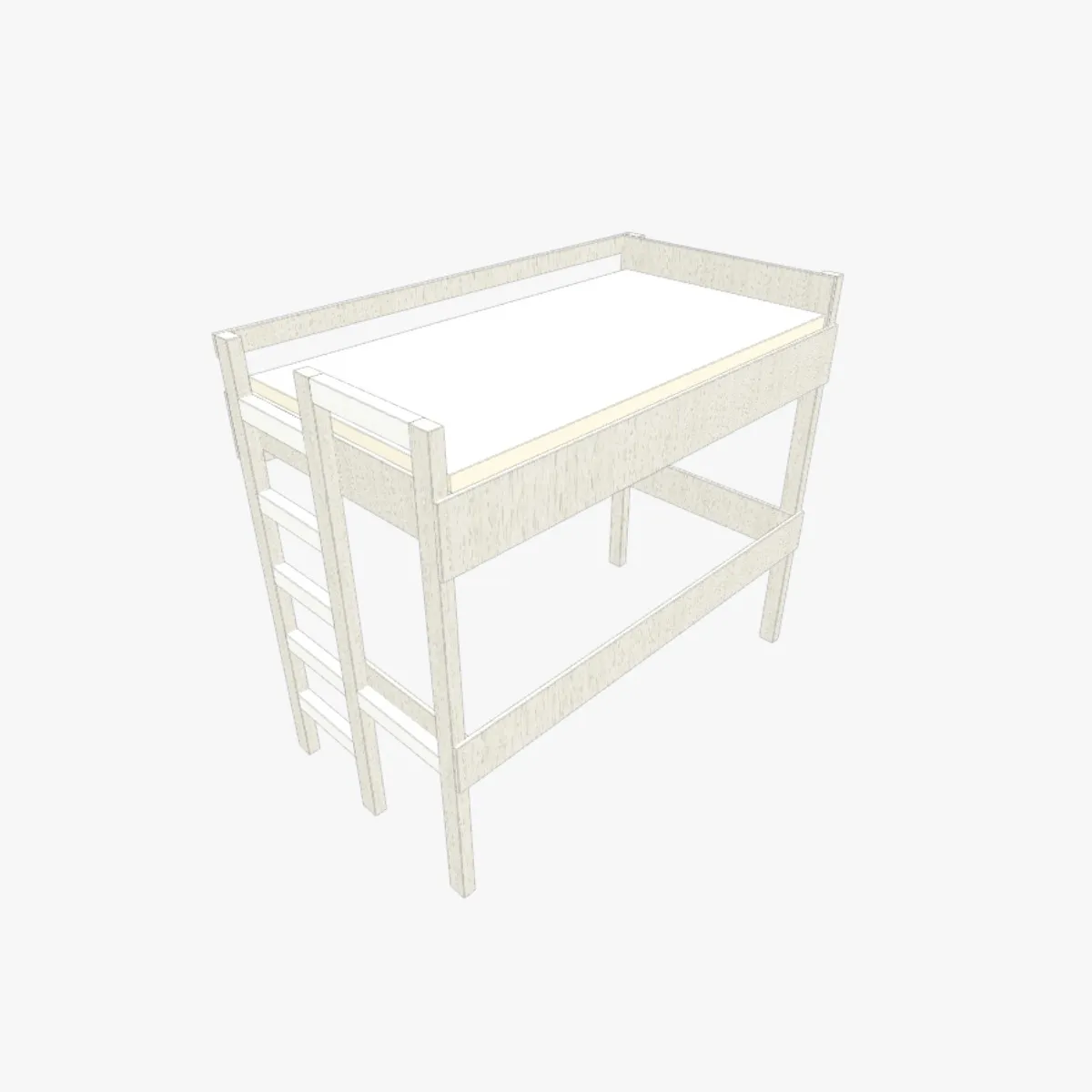

Cama Joaquin is a compact loft bed project designed for small rooms that need floor space for study or play. These loft bed plans outline a raised sleeping platform in solid wood with clean, minimal lines and a front ladder. The concept suits a twin/single mattress and can be adapted to other sizes. The design emphasizes straightforward joinery and a robust frame with guardrails. After detailed review, the blueprints are available for download, and dimensions can be adjusted to meet different ceiling heights or room layouts.

Construction Features

Suggested overall size for a twin mattress is about 78.5 in (1995 mm) long, 43 in (1090 mm) wide, and 65 in (1650 mm) high, yielding an under‑bed clearance near 53 in (1350 mm). Bed rails and posts can be produced in solid wood; slats or a plywood deck support the mattress. Typical components use 3/4 in (19 mm) plywood or 1-1/2 in x 3-1/2 in (38 mm x 89 mm) lumber for posts and rails. Guardrails rise approximately 6.5–8 in (165–203 mm) above the mattress top, and the ladder rungs are spaced around 10 in (254 mm). These dimensions are indicative and may be adapted to local safety guidance and preferred ergonomics.

Materials and Hardware

Recommended materials include pine, birch, or oak solid wood; 3/4 in (19 mm) plywood for the deck; and 1/2 in (12 mm) plywood for optional side panels. Hardware may include wood screws, pocket screws, dowels, cam bolts, steel brackets, bed‑rail fasteners, wood glue, and edge banding. Optional items: wall‑anchoring brackets, leveling feet, and surface finishes such as water‑based varnish or oil.

Customization Options

- Mattress formats: twin 39 x 75 in (991 x 1905 mm), full 54 x 75 in (1372 x 1905 mm). - Height and clearance adapted to ceiling constraints. - Ladder position left/right, or swap for stairs with storage. - Add a desk, shelves, or drawers under the loft. - Finish choices and wood species tailored to interior style.
