DIY Desk Project with Storage – Plan Set

Creator3447
0%

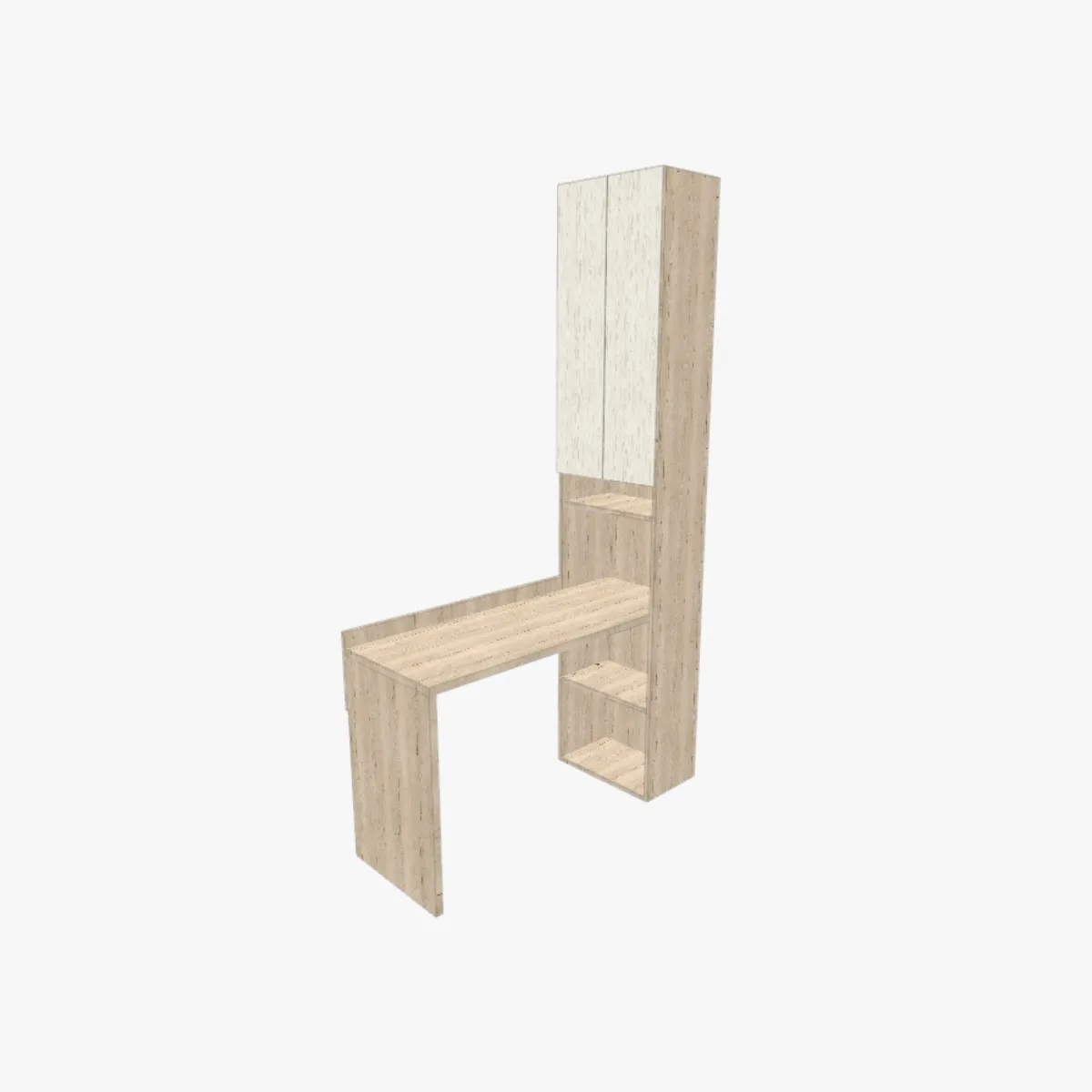

Desk with shelves and tall storage cabinet – desk plans and woodworking blueprints
Overall material utilization factor - 37.4 %
Total edge banding length - 7.38′ (24.22 m)
Total cutting length - 17.03′ (55.881 m)
Materials Hardware
Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H1176_37) - 2 pcs.
+ Edge banding 0.4 x 19 (H1176_37) - 5.66′ (18.572 m)

Countertop 1.1″x23.62″x161.42″ (28x600x4100 mm) ( color H1176_37) - 1 pcs.
+ Edge banding - 0′ (0 m)

Laminated Particle Board 0.63″x72.05″x108.27″ (16x1830x2750 mm) ( color H1122_22) - 1 pcs.
+ Edge banding 0.4 x 19 (H1176_37) - 1.72′ (5.648 m)

Confirmats - 16 pcs.
Rafixes - 20 pcs.

Description by Flatma:

This project features a space‑saving desk with shelves integrated into a tall storage column. The worktop spans from a side panel leg to the vertical unit, creating a stable workstation for home office, studio, or study. Open cubbies provide quick‑access storage, while the upper section is designed for a closed cabinet front (hinged or sliding, depending on chosen hardware). The layout keeps the footprint minimal while maximizing vertical capacity—ideal for small rooms where a desk and shelving need to coexist in one build. The plans use globally available sheet materials and straightforward joinery for a clean, modern look.

Construction Features

The construction incorporates 16 mm (5/8 in) laminated particle board for the carcass and a 28 mm (1-1/8 in) countertop at 600 mm (23-5/8 in) depth. The column supports one end of the desk; the opposite end uses a panel leg for rigidity. Edge banding is specified at 0.4×19 mm on visible sides for durability and a finished appearance. Wall anchoring of the tall unit is recommended. The design allows either cam-bolt/dowel style assembly or screw-and-glue methods; hinge type for the upper cabinet is selectable during hardware choice.

Materials and Hardware

- Laminated particle board, 16×1830×2750 mm, color H1176_37 – 2 sheets - Countertop, 28×600×4100 mm, color H1176_37 – 1 piece - Laminated particle board, 16×1830×2750 mm, color H1122_22 – 1 sheet - Edge banding 0.4×19 mm (H1176_37) – total 24.22 m (≈79.5 ft) - Mounting hardware and fasteners – 16 pcs and 20 pcs (selection per preferred joinery) Additional data: material utilization factor ≈37.4%; total cut length ≈55.881 m (≈183.3 ft). After detailed review, the blueprints are available for download.

Customization Options

- Adjust overall width, height, and shelf spacing to fit room dimensions. - Mirror the column (left/right) and choose open or closed upper storage. - Substitute materials (MDF, plywood, or solid wood) and select different edge profiles. - Add cable grommets, LED lighting, or drawer inserts. Element dimensions can be modified to suit individual requirements.
