Nursery Dresser Blueprint - Dimensions & Cut List

комод с отдельным пеленальным столом

Overall material utilization factor - 51.41 %
Total edge banding length - 10.08′ (33.074 m)
Total cutting length - 16.64′ (54.596 m)

Description by Flatma:

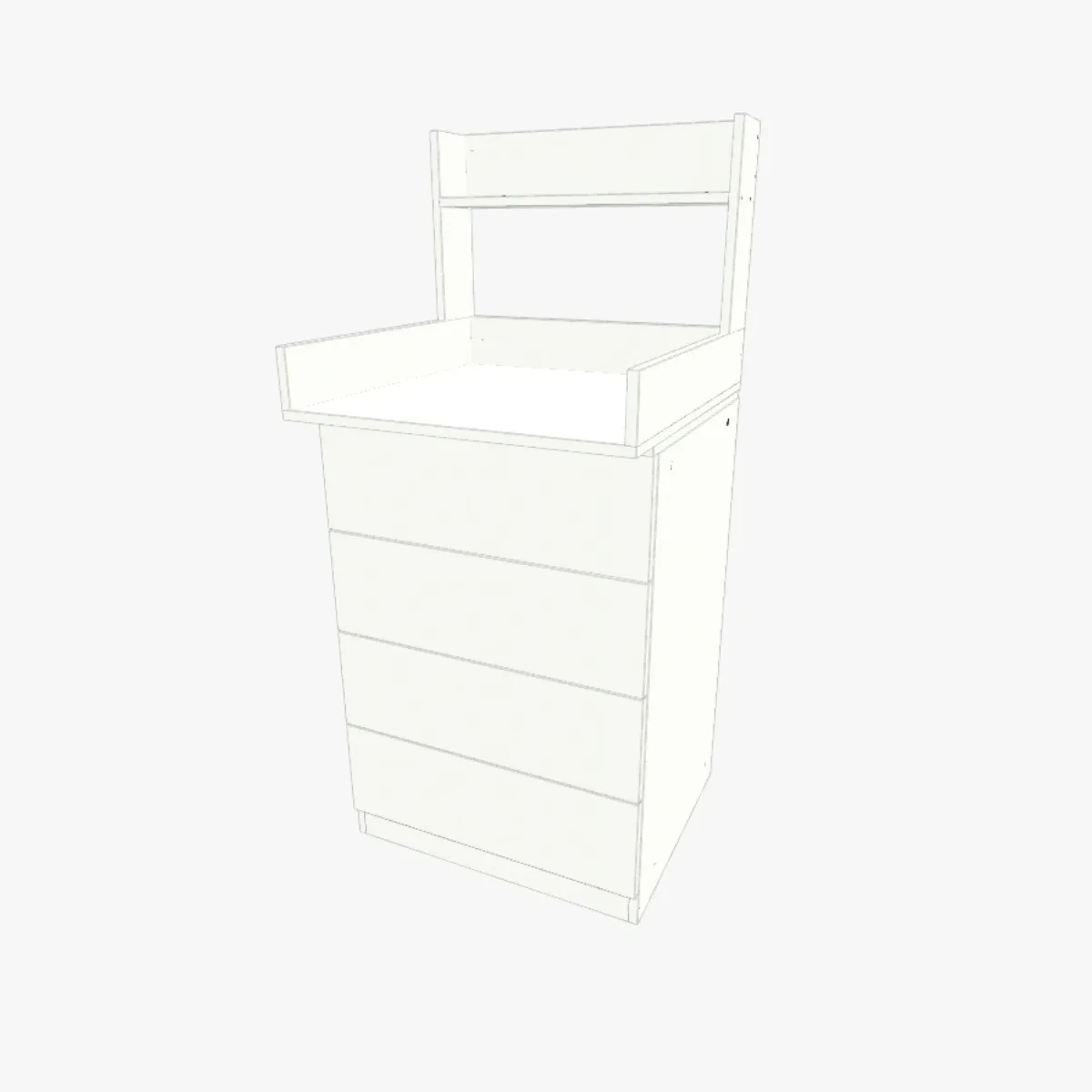

This project features a dresser with a separate changing table top designed for a modern nursery. The clean, rectangular case provides three to five drawers under an open shelf, keeping everyday items within reach while larger essentials stay organized. The minimalist profile suits contemporary interiors and can be scaled to different rooms. Suggested overall dimensions are 35.4 x 19.7 x 38.6 in (900 x 500 x 980 mm), sized for a comfortable changing height and efficient storage. The changing table component is conceived as a removable tray that seats securely on the dresser, so the piece functions as a standard chest of drawers later. The dresser plans prioritize simple, repeatable parts and straightforward assembly for consistent results.

Construction Features

The case uses 0.75 in (19 mm) MDF or plywood for the carcass, with a 0.25 in (6 mm) back panel set in a rabbet for squareness. An open shelf at the top sits above stacked drawers on full-extension slides. Typical slide length is 16 in (406 mm), matching a body depth of about 19.7 in (500 mm). The changing tray aims for an internal platform around 32.0 x 16.5 in (813 x 420 mm) with 3.0 in (76 mm) perimeter rails. Edges can be eased with a small round-over for comfort. Anti-tip wall anchoring is recommended for tall storage units. All dimensions in the dresser plans and woodworking blueprints are presented in inches (with millimeters in parentheses) for universal reference.

Materials and Hardware

- 0.75 in (19 mm) MDF or plywood for sides, top, bottom, and dividers - 0.50 in (12 mm) plywood for drawer boxes; 0.25 in (6 mm) plywood for backs and drawer bottoms - Full-extension drawer slides, 16 in (406 mm), 3–5 pairs - Handles/knobs, edge banding, wood glue - Wood screws (#8 x 1.25 in (32 mm)), dowels or cam bolts, brackets, and wall-anchoring hardware

Customization Options

The dresser plans allow adjusting width, depth, and height to suit different rooms: for example, 31.5–43.3 in (800–1100 mm) overall width or an extra drawer instead of the open shelf. The changing tray can be removable or fixed, with optional soft-close slides, legs or toe-kick, and various finishes (paint, laminate, or veneer). After detailed review, the blueprints are available for download, and element dimensions can be tailored to individual requirements.
